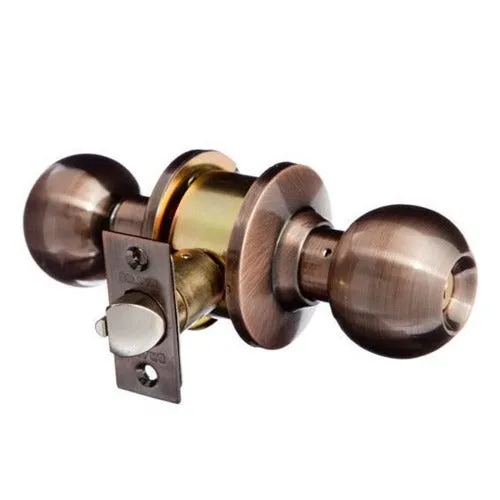

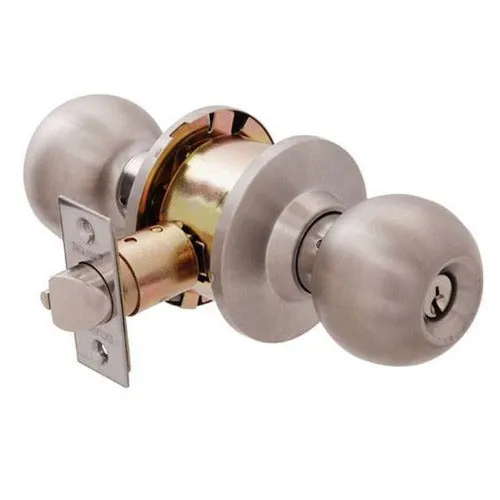

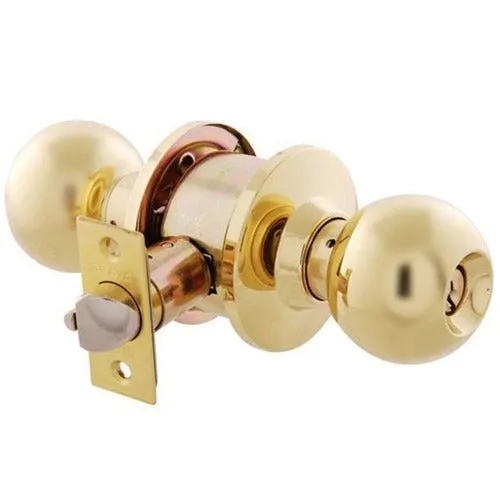

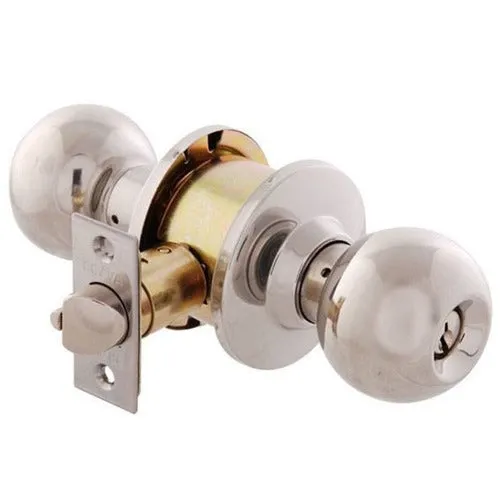

BRAVA Urban 100C-BA series entrance knobset on Silca TE2 keyway. Domestic grade entrance knobset.
Entrance function
- Outside opened by knob when free, key unlocks & retracts the latch.
- Inside opened by knob at all times, turning inside knob releases push button.
- Push button locks outside knob.
Additional info
Silca TE2 keyway.
Rekeyable to other TE2/GR9 profile locks.
Cylindrical fixing.
Spherical knob design.
Finished in stainless steel.
Supplied boxed (and colour coded) with mounting hardware.
Replacement for Gainsborough, 840GOV
| Door thickness | 35-45mm |
| Backset | adjustable 60/70mm |
|
max. Lever / knob projection distance may not include turnsnib |
64mm |
| Strike | 70mm x 27mm x 1.2mm |
| Latch | adjustable 60/70mm |
| Latch face plate | 57mm x 25mm |
| Cylinder | TE2 / GR9 profile |
| Door handing | Non-handed knobs |
| Rose | 68mm |
Technical Specifications
| Brand | BRAVA |
| Display Pack | No |
| Door Thickness | 35-45 mm |
| Finish | Satin Stainless Steel |
| Function (FUNCTION) | Entrance |
| Knob Shape | Spherical |
| Lock Grade | Domestic |
| Lock Type | Cylindrical |
| Rose Diameter | 68 |
| Backset (BACKSET) | 60/70 mm |
| Key Profile (KEYPROFILE) | TE2 |
